Landing Gear Standard 28Ton Semi-Trailer for 20ft 40ft 45ft Shipping Container Flatbed

Name: Landing Gear Standard 28Ton SemiTrailer for 20ft 40ft 45ft Shipping Container Flatbed
Brand: AOTONG
Price: 12 USD

China Landing Gear Standard 28Ton Semi-Trailer for 20ft 40ft 45ft Shipping Container Flatbed factory

Use : Truck Trailer

Type : Semi-Trailer

Material : Steel

Size : customised

Max Payload : 30-100T

Place of Origin : CHINA

Brand Name : AOTONG

color : customer's optional

Axle : FUWA, BPW optional

Suspension : Mechanical/Air Suspension

Landing Gear : Standard 28Ton

King pin : 2"(50mm)or3.5"(90mm)

Brake System : Dual Line Braking System

Twist Locks : 4/8/12 pcs

Electric : 24V 7 ways

Usage : 20ft 40ft 45ft container transport

Condition : Brand-new

MOQ : 1 UNIT

Price : $12,500.00/sets >=2 sets

Certification : ISO,CCC

Packaging Details : Exporting Standard

Delivery Time : 25 days

Payment Terms : TT

Contact Now

Factory direct 3 axles 20ft 40ft container platform flatbed semi trailer/truck

Landing Gear Standard 28Ton Semi-Trailer for 20ft 40ft 45ft Shipping Container Flatbed

Product Description

1. Product Name: container semi trailer

2. Outside Dimension: 12450X2450X1550 mm for 40ft container (also we can design 20ft, 45ft,48ft cntainer semi trailer)

3. payload: 20-60 ton

4. material: Q235 and Q345

5. Axle: FUWA brand 13ton

6. tyre: 825R20, 9.00R20, 10.00R20,11.00R20 also can accroding to your request.

Product Name	Model	Outside Dimension (L×W×H)	leaf spring	NO.of tire	NO. of Axle	type of tire	Total Weight(kg)	Rated Loading Capacity(kg)	Distance of each Axle(mm)
Container semi trailer	LAT9380TJZG	12450X2450X1550	10 (8) (4)	12	3	11.00R20	37680	40	6900+1310+1310

Brand Name	Aotong Brand
Manufacture	Shandong JUYUAN Automobile Technology Co.,Ltd
Main Frame	Q235B manganese plates, automatic submerged arc welded
Floor	Steel Sheet 3mm thickness or diamond plate
Axle	Brand: FUWA (BPW optional)
Suspension	Independent stamping steel rigid suspension ( air suspension)
King Pin	2" or 3.5" traction pin made in China( Jost optional)
Landing Gear	chinese brand loading 28000kg (JOST optional)
Wheel Rim	12 units of 7.50-20 rim
Tyre	12 units of 10.00-20 nylon tyre
Spare Wheel Carrier	One set of spare wheel carrier including a riser.
Braking System	dual-loop air-break break systerm
Brake Air Chamber	Four double and two single chamber
Electrical System	1. Voltage: 24v 2. Receptacle: 7 ways(7 wire harness)
Painting	Sand blasting processing clean rust 1 coat of anticorrosive primer 2 coats of finish urethane paint Color as customer choice
Accessory	One tooling box with a set of standard trailer tool
Usage	The cargo's carrying part is container structure designed, mainly applicable to the transportations for ships, ports, airlines, roads, transfer stations, bridges, tunnels, and other multimodal transport matching logistical systems.
Characteristics	1. Using container truck, the goods can be loaded in the deliverers's warehouse and be unloaded in the receivers' warehouse without taking the goods out for transferring. 2. Customary quick dispatches are allowed, transiting the goods form one kind of transport vehicle to another is available. 3. Internal design is convenient for the goods' fill-ups and discharging, satisfing your diversified needs and wants.
Other Specifications	The frame can be flat plate style and skeleton style.Twist lock settings installed 12 only, 8 only, and 4 only to satisfy the containers with different sizes for convince.
remark	we can designed model according to client's requirement

Product display

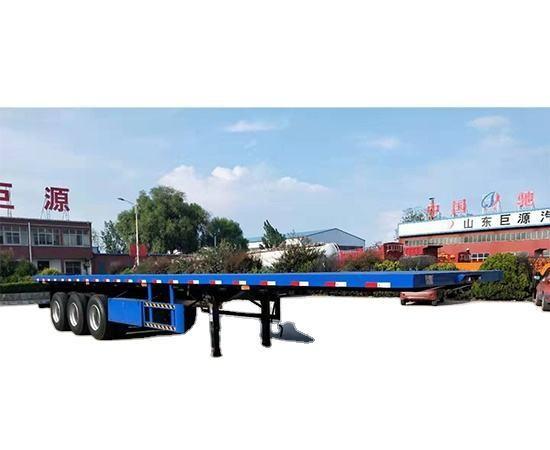

Product Picture

Landing Gear Standard 28Ton Semi-Trailer for 20ft 40ft 45ft Shipping Container Flatbed

According to client's speical requests for trailer, we can design full set drawings for clients.

(1) .The material of trailer frames is high quality and strength steel that can extend the using life of trailer.
(2). It has been designed appropriately according with clients requirements, such as dimension, payload, main beam and so on.
(3). Brake system and Electric system are well-known brand in the world.
(4). Shot blasting twice and particular coat painting can guarantee the quality of trailer surface.
(5). All componenet/configuration (OEM parts) can be arranged based on clients detailed requirements and meet clients need.

Packaging & Shipping

Landing Gear Standard 28Ton Semi-Trailer for 20ft 40ft 45ft Shipping Container Flatbed

According to customer's loacation and the vehicles size,we provide professional packing can save great sea freight for customers.

Landing Gear Standard 28Ton Semi-Trailer for 20ft 40ft 45ft Shipping Container Flatbed
