Transport 20ft 40ft Container 13 tons Axle Semi-Trailer Skeleton Chassis for Madagascar

Name: Transport 20ft 40ft Container 13 tons Axle SemiTrailer Skeleton Chassis for Madagascar
Brand: AOTONG
Price: 10 USD

China Transport 20ft 40ft Container 13 tons Axle Semi-Trailer Skeleton Chassis for Madagascar factory

Use : Truck Trailer

Type : Semi-Trailer

Material : Steel

Size : 12160*2500*1550

Max Payload : 50T

Place of Origin : CHINA

Brand Name : AOTONG

Color : Blue

Axle : 13 tons

Pay loading : 50tons

Tare : 4.5tons

Landing Gear : 28T Manual Operating

Suspension : Mechanical Suspension

King pin : 90#/50#

Tire : 12R22.5

Function : Transport 20ft 40ft Container

Certification : ISO,CCC

MOQ : 1 UNIT

Price : $10,100.00/sets >=2 sets

Packaging Details : Exporting Standard

Delivery Time : 25 days

Payment Terms : TT

Contact Now

Product Description

Customize the semi trailer according to your requirements.Professional semi trailer manufacturer with more than 30 years of production experience serve for you —AOTONG

Transport 20ft 40ft Container 13 tons Axle Semi-Trailer Skeleton Chassis for Madagascar

Name	2 axle 20FT skeleton semi trailer
Rated Load	30 ton
Tare Weight	5000 kg
Tyre Specifications	12R22.5
No. Of the Tyres	8
No. Of the Axles	2
Axle brand	13 ton FUWA
Axle-load	13000 kg
King Pin	50#
Landing Leg	28 Ton two speed
Main beam	Heavy duty I beam
Pieces of leaf-spring	10
Outside Dimensions (LxWxH)	7000X2500X1500 (mm)
Material of the Main Beam	Q345B manganese plates,
		automatic submerged arc welded
		height:500mm
		Upper plate:12mm
		Middle plate:6mm
		Lower plate:12mm
Brake System	Double air chamber, brake valve, 40L air tanks; ABS optional
Brake Air Chamber	4 double chamber
Rim	9.00-22.5 8 pcs
Electrical	24V 7 ways(7 wire harness)
Color	Any color will be available
Painting	Blasting and clean rust, 1 coat of prime painting, 2 coat of finish painting.
Accessory	One tooling box with a set of standard trailer tool
Twistlock No	4pcs
Spare wheel carrier	1

AOTONG skeleton trailer can satisfy the concentrated force, the anti bump and the distortion resistance.

AOTONG make sure that skeleton semi trailer can meet load requirements on different kind of roads and has a long service life.

AOTONG start from every detail, carefully craft to customize your high-quality semi trailer.

Excellent design ability

We have many experienced designers, according to your needs to develop the most reasonable design and meet your customized needs.
Click for your own design！

Related Products

We also have rich production experience in the following models.

If this item is not what you like, then we suggest these items：

Click to get the models that have been shipped to your country！

20ft skeleton semi trailer

40ft skeleton semi trailer

45ft skeletonsemi trailer

Superlink skeleton semi trailer

Side loader semi trailer

Dump skeleton semi trailer

Spead trailer

Terminal trailer

Flatbed trailer with bolster

2 axles flatbed semi trailer

3 axles flatbed semi trailer

4 axles flatbed semi trailer

Superlink flatbed semi trailer

extendable flatbed semi trailer

flatbed trailer with detachable sidewall

Packing&Shipping

In nude,Polish with water wax before shipment

1. By 40ft/45ft/40fr container

2. By bulk /roro ship

3. As your requirments.

Professional package saves freight cost for you. In order to prevent seawater corrosion,we will carefully Wrap film or covered tarpaulin.When goods arrive in Africa, Australia and even South America, they can maintain a good appearance.

High quality painting and professional transportation ensure good condition of goods. We believe that we can win-win by providing detailed services.

Other Hot Products

20ft 40ft 45ft 48ft 50ft flatbed trailer $8,000.00 - $13,000.00 / Set

1Sets

20ft 40ft skeleton container trailer $7,000.00 - $12,000.00 / Set

1Sets

lowbed semi trailer

$10,000.00 - $22,000.00 / Set

1Sets

superlink side wall trailer

$8,000.00 - $23,000.00 / Set

1Sets

superlink skeleton container trailer

$10,000.00 - $22,000.00 / Set

1Sets

dump truck semi trailer

$10,000.00 - $22,000.00 / Set

1Sets

3 axles side wall cago truck tailer

$10,000.00 - $20,000.00 / Set

1Sets

3 axles fence cargo truck trailer

$11,000.00- $15,000.00 / Set

1Sets

livestock cattle transport trailer $16,000.00 - $22,000.00 / Set

1Sets

3 axles U shape dump truck trailer $12,000.00 - $18,000.00 / Set

1Sets

20ft 40ft rear skeleton trailer

$8,000.00 - $14,000.00 / Set

1Sets

5-12 car transporter car carrier trailer $15,000.00 - $30,000.00 / Set

1Sets

2 axle 3axle agriculture farm trailer $6,000.00 - $10,000.00 / Set

1Sets

bulk powder cement tanker trailer

$18,000.00 - $20,000.00 / Set

1Sets

3axle Oil fuel tank semi truck trailer

$12,000.00 - $18,000.00 / Set

1Sets

HOWO dump truck 12 tyres 6*4 371 $45,000.00 - $60,000.00 / Set

1Sets

6x4 SINO HOWO truck tractor head

$45,000.00 - $60,000.00 / Set

1Sets

Modular semi trailer

$50,000.00 - $220,000.00 / Set

1Sets

Company Introduction

★We are the direct factory for all kinds of good quality semi trailers with competitive price.

★It's established in 1992 with more than 30years experience and well equipped testing facilities and strong technical force.

★It covers a total area of 150, 000 square meters with more than 670 workers ( 16 senior titled personnels, 118 professionals).

★Up to now, 60 series with hundreds of special vehicles and related products, which are best selling in more than 30 countries.

Welcome to visit our factory！

Customer Recognition

Asian customers

Southeast Asian customers

South American customers

Australian customers

Middle East customers

African customers

Up to now, 60 series with hundreds of special vehicles and related products, which are best selling in more than 30 countries such as Australia, Singapore, Japan, Sudan, and other Middle East, Southeast Asia and Africa countries.

Our services and products are highly recognized by customers.

Welcome to send us your inquiry at any time!

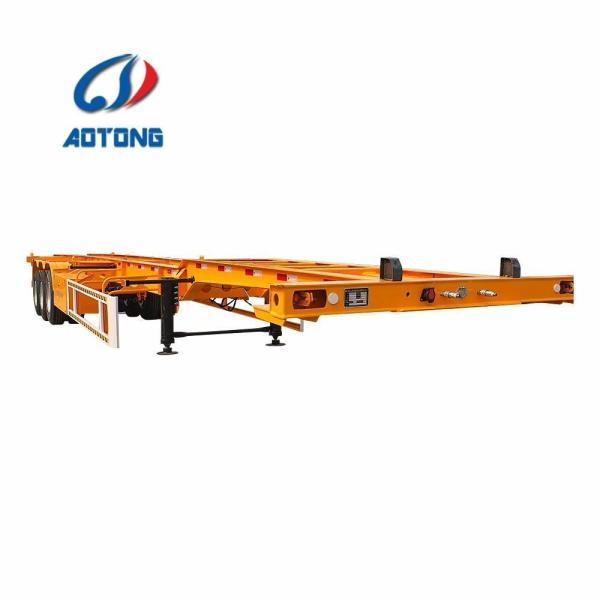

Transport 20ft 40ft Container 13 tons Axle Semi-Trailer Skeleton Chassis for Madagascar Images
