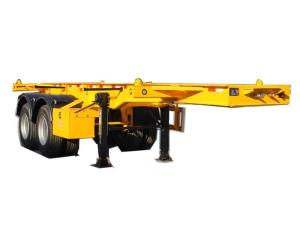

High Capacity 2 Axles 20 Feet Container Transportation Skeletal Semi Trailer for Loading 30 Tons

Name: High Capacity 2 Axles 20 Feet Container Transportation Skeletal Semi Trailer for Loading 30 Tons
Brand: AOTONG
Price: 9 USD

Use : Truck Trailer

Type : Semi-Trailer

Material : Steel

Size : 7*2.5*1.55m

Max Payload : 30 ton

Place of Origin : CHINA

Brand Name : AOTONG

Function : Transport 20ft Container

Suspension : Leaf spring or air bag

Landing Gear : 25 ton

King pin : 50

Brake : Dual brake chamber

AXle No.&Brand : 13 tonnage Aotong

Tare Weight : 3.5 tonnage

Tire : 12r22.5

Chassis : Skeletal Type

Certification : ISO,CCC

Packaging Details : Exporting Standard

Port : Tianjin/ Lianyungang/Qingdao/Shanghai port

Supply Ability : 200 Set/Sets per Month

MOQ : 1 UNIT

Price : $9,300.00/units 2-5 units

Delivery Time : 25 days

Payment Terms : TT

Contact Now

Product Description

Customize the semi trailer according to your requirements.Professional semi trailer manufacturer with more than 30 years of production experience serve for you —AOTONG

High Capacity 2 Axles 20 Feet Container Transportation Skeletal Semi Trailer for Loading 30 Tons

Name	2 axle 20FT skeleton semi trailer
Rated Load	30 ton
Tare Weight	5000 kg
Tyre Specifications	12R22.5
No. Of the Tyres	8
No. Of the Axles	2
Axle brand	13 ton FUWA
Axle-load	13000 kg
King Pin	50#
Landing Leg	28 Ton two speed
Main beam	Heavy duty I beam
Pieces of leaf-spring	10
Outside Dimensions (LxWxH)	7000X2500X1500 (mm)
Material of the Main Beam	Q345B manganese plates,
		automatic submerged arc welded
		height:500mm
		Upper plate:12mm
		Middle plate:6mm
		Lower plate:12mm
Brake System	Double air chamber, brake valve, 40L air tanks; ABS optional
Brake Air Chamber	4 double chamber
Rim	9.00-22.5 8 pcs
Electrical	24V 7 ways(7 wire harness)
Color	Any color will be available
Painting	Blasting and clean rust, 1 coat of prime painting, 2 coat of finish painting.
Accessory	One tooling box with a set of standard trailer tool
Twistlock No	4pcs
Spare wheel carrier	1

AOTONG skeleton trailer can satisfy the concentrated force, the anti bump and the distortion resistance.

AOTONG make sure that skeleton semi trailer can meet load requirements on different kind of roads and has a long service life.

AOTONG start from every detail, carefully craft to customize your high-quality semi trailer.

Excellent design ability

We have many experienced designers, according to your needs to develop the most reasonable design and meet your customized needs.
Click for your own design！

Related Products

We also have rich production experience in the following models.

If this item is not what you like, then we suggest these items：

Click to get the models that have been shipped to your country！

20ft skeleton semi trailer

40ft skeleton semi trailer

45ft skeletonsemi trailer

Superlink skeleton semi trailer

Side loader semi trailer

Dump skeleton semi trailer

Spead trailer

Terminal trailer

Flatbed trailer with bolster

2 axles flatbed semi trailer

3 axles flatbed semi trailer

4 axles flatbed semi trailer

Superlink flatbed semi trailer

extendable flatbed semi trailer

flatbed trailer with detachable sidewall

Packing&Shipping

In nude,Polish with water wax before shipment

1. By 40ft/45ft/40fr container

2. By bulk /roro ship

3. As your requirments.

Professional package saves freight cost for you. In order to prevent seawater corrosion,we will carefully Wrap film or covered tarpaulin.When goods arrive in Africa, Australia and even South America, they can maintain a good appearance.

High quality painting and professional transportation ensure good condition of goods. We believe that we can win-win by providing detailed services.
